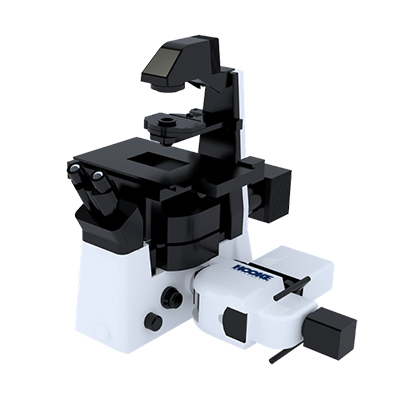

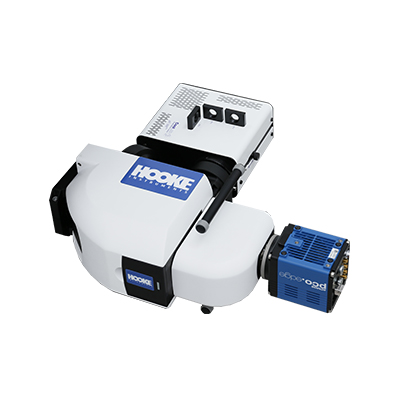

S3000 Ultra-fast Three-dimensional Fluorescence Imaging System

HOOKE S3000 applies three-kind stripes spinning disk confocal imaging technology and motorized Z-axis fast scanning, which greatly improves the imaging speed and meets the needs of living cells dynamic observation research. LED excite light source reduce phototoxicity and photo-bleaching greatly, which is suitable for continuous observation. Compact new confocal optical path design,HOOKE S3000 can be exibly coupled to multi-brand microscopes, or the complete set of instru-ment can be customized to meet dierent laboratory requirements.

Contact Us

Ⅰ.Product Introduction

HOOKE S3000 applies three-kind stripes spinning disk confocal imaging technology and motorized Z-axis fast scanning, which greatly improves the imaging speed and meets the needs of living cells dynamic observation research. LED excite light source reduce phototoxicity and photo-bleaching greatly, which is suitable for continuous observation. Compact new confocal optical path design,HOOKE S3000 can be exibly coupled to multi-brand microscopes, or the complete set of instru-ment can be customized to meet dierent laboratory requirements.

Ⅱ.Product Features

1、ULTRA-FAST CONFOCAL IMAGING

Using structured illumination spinning disk technology, the transmission eciency is several times higher than pinhole confocal spinning disk, bring LED excitation light source in confocal imaging; According to the dierent camera choice, the imaging speed can reach 30-50 frames per second; Three slicing modes can be switched freely to realize the combination of fast imaging and high-quali-ty imaging.

2、FULL SPECTRUM DETECTION

One LED light source can be used for full-spectrum detection, with excitation light of 370-700 nm and emission light of 410-750 nm; Covering the spectral range of common uorescent probes; 4-position lter block wheel, the channel switching time is less than 0.2s, and the lter block can be tool-free replaced, which can oer 4+N multi-channel uorescence imaging.

3、MODULAR DESIGN

The compact confocal light path design makes the instru-ment smaller. It can be installed in a limited space, and the confocal module can be exibly coupled to various micro-scopes, such as upright, inverted and stereo microscopes to adapt to dierent application scenarios. High reliability and expandability, compatible with existed microscopes, so that scientists can be released from the maintenance of instru-ments and devote more time to scientic research itself.

Ⅲ.Technical Specification


Fast Confocal

Scanning System


Scanning mode: The three modes correspond to different optical slice

thicknesses


Three - stripe turntable system to improve the transmittance of incident

light and fluorescence signal


Maximum scan speed: 20-40fps (depending on camera)


Rotary speed: 3000 RPM /min


The light source

Confocal white LED light source, can reduce phototoxicity and photobleaching, life of more than 25,000 hours 3 channel LED light source, wavelength range 370nm-700nm, intensity adjustment range 0-100%

Filter module

4 sets of filter blocks can be installed at the same time, built-in electric light brake, waterproof design, automatic switch filter blocks, parameters are as follows (can also be customized):

DAPI-LED:381-404nm Ex, 417-477nm Em

GFP-LED:446-486nm Ex, 503-548nm Em

FITC:473-491nm Ex, 503-548nm Em

YFP:488-512nm Ex, 529-556nm Em

CY3/TRITC:   532-554nm Ex,573-613nm Em

DsRed-LED:543-566nm Ex, 582-636nm Em

mCherry-LED:568-589nm Ex, 604-679nm Em

Cy5-LED:   626-644nm Ex, 659-701nm Em

Filter block switching speed ≤0.2 SEC


Ⅳ.Application Area

1. Cell biology

2. Microbiology

3. Developmental biology

4. Genetics

5. Histology
